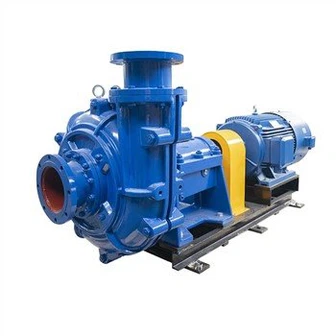

Horizontal Centrifugal Slurry Pump
Type: Centrifugal Discharge： 25-500mm Accessible particles: 10-120mm Capacity: 8-3500m³/h Head: 2-70m Power: 4-1000kw
Product Introduction
as follows.
Product Introduction
Horizontal Centrifugal Slurry Pump - The Ideal Solution for Heavy-duty Applications
As a manufacturer of high-quality horizontal centrifugal slurry pumps, we have been providing reliable and efficient solutions to industrial and mining applications worldwide. Powered by our advanced technology and brilliant engineering, our slurry pumps are designed to perform excellently even in the most demanding conditions.
Our horizontal centrifugal slurry pump is specifically engineered to handle highly abrasive and corrosive slurries that contain solid particles of various sizes and shapes. The pump's robust construction ensures that it delivers top-notch performance and long-lasting durability. It is equipped with a range of features that make it the perfect solution for a wide range of heavy-duty applications.
High-performance and energy-efficient
Our horizontal centrifugal slurry pumps are known for their high-performance and energy-efficient operation. This is because of the combination of our advanced technology, materials, and engineering techniques. Our pumps feature a high-pressure head, which ensures maximum efficiency in pumping slurry, thereby reducing energy consumption and saving you money.
Durability and Low maintenance
Our slurry pumps are designed and built to withstand the harshest conditions in industrial and mining applications. The wear-resistant materials used for the impellers and other wet parts ensure long service life and minimum downtime. This helps to reduce maintenance cost and improve the overall efficiency of the pump.
Easy to Install and Operate
Our horizontal centrifugal slurry pumps are easy to install and operate. All parts are designed and engineered to fit seamlessly, making installation and replacement of parts a breeze. Additionally, we offer comprehensive installation and maintenance manuals, helping customers to better understand our products and reduce errors during the installation and operation process.
Application
Our horizontal centrifugal slurry pumps are suitable for a wide range of industrial and mining applications. They are commonly used in industries such as mineral processing, coal preparation, chemical processing, steel production, copper refining, and numerous others.
Advantages
1. High-performance slurry handling: Our slurry pumps are designed to handle highly abrasive and corrosive slurries, making them ideal for heavy-duty applications.
2. Durability and Low maintenance: Our pumps feature wear-resistant materials that ensure reliable performance and minimum maintenance.
3. Energy-efficient operation: Our pumps are designed to deliver excellent performance while consuming less energy, saving you money.
4. Easy to install and operate: Our pumps are designed and engineered to be user-friendly, making them easy to install and operate.
5. Comprehensive Support: We offer comprehensive support, including installation, training, and after-sales service, ensuring the maximum lifespan of our products.
Conclusion
In summary, our Horizontal Centrifugal Slurry Pump is the ideal solution for your heavy-duty applications. With our advanced technology, high-quality materials, and excellent engineering, we offer customers a reliable, durable, and energy-efficient product. Our comprehensive installation and maintenance manuals ensure that customers have all the information they need to install and operate our pumps with ease. Contact us to learn more about our Horizontal Centrifugal Slurry Pumps and discover how we can help you improve your mining or industrial processes.
Name | Horizontal centrifugal MAH slurry pump | Capacity(m³/h) | 8-3500 |
Model | MAH | Head(m) | 2-90 |
Theory | Centrifugal | Diameter(mm) | 25-500 |
Stage | Single | Power(kw) | 4-1000kw |
Material | Cr26,Cr30,A05,A49,Rubber liner | NPSHr(m) | 4-7 |
Seal | Mechanical seal / packing seal | Pressure(bar) | 16 |
Lubrication | Grease | Frequency(Hz) | 50/60Hz |
Prime mover | Electric motor / diesel engine | Voltage(V) | 230/380/415/6000/10000 |
Liquid | Tailings、mud、sludge、pulp、slurry、lime、sugar | ||
Application | Mining、Metallurgy, electric power, sewage treatment...etc | ||
Performance
Features of horizontal centrifugal slurry pump
· Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
· Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
· Casing – Casing halves of cast or ductile iron provide high operating pressure capabilities.
· Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
· Throatbush – wear is reduced and maintenance simplified by the use of tapered.
Materials
High chrome alloy: A05, A07, A49, etc.
Natural rubber: R08, R26, R33, R55, etc.
Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.
OEM part codes
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...
A H Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-A H Slurry Pump code: E4083
6/4 E-A H Slurry Pump code: E4083
8/6 E-A H Slurry Pump code: F6083
8/6 F-A H Slurry Pump code: F6083
10/8 F-A H Slurry Pump code: F8083
10/8 ST-A H Slurry Pump code: G8083
12/10 ST-A H Slurry Pump code: G10083
14/12 ST-A H Slurry Pump code: G12083
G Series Sand Gravel Pump
12/10G-G Sand Gravel Pump Throat Bush code: FG10013
14/12G-G Sand Gravel Pump Throat Bush code: GG1412013
Frame & Bearing Assembly types
Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
Why choose us?
- Our Horizontal Slurry Pumps have been widely used in mining, minerals processing, oil and gas, and power generation industries.
- We inherit and carry forward the excellent moral quality of the Chinese nation, and establish the excellent tradition of holistic supremacy and self-improvement.
- Our Horizontal Slurry Pumps are manufactured using state-of-the-art equipment and technologies.
- Our company is a scientific and technological enterprise integrating research and development, design, manufacturing and sales, focusing on the innovation and practice of Horizontal Centrifugal Slurry Pump industry, and is committed to providing reliable, high quality, beautiful and cost-effective products for customers.
- Our Horizontal Slurry Pumps are available in various sizes and configurations to meet different requirements.
- 'Honesty and win-win' is our company's solemn promise to customers. We look forward to sincere cooperation with friends from all walks of life for a better future.
- Our Horizontal Slurry Pumps are designed to handle a variety of liquids and materials.
- Our company has good technical advantages, financial advantages, human resources advantages and rich experience in production management. We are committed to the R&D and manufacturing of Horizontal Centrifugal Slurry Pump and enjoy a high reputation in many fields. In cooperation with domestic and foreign manufacturers, our brand is becoming mature and brilliant.
- Our Horizontal Slurry Pumps are tested rigorously to ensure they meet or exceed international quality and safety standards.
- Our company pays attention to the service quality, which is well received by the majority of customers, and also reflects good service and economic benefits, and lays the foundation for further development.
Hot Tags: horizontal centrifugal slurry pump, China horizontal centrifugal slurry pump suppliers, manufacturers, factory
