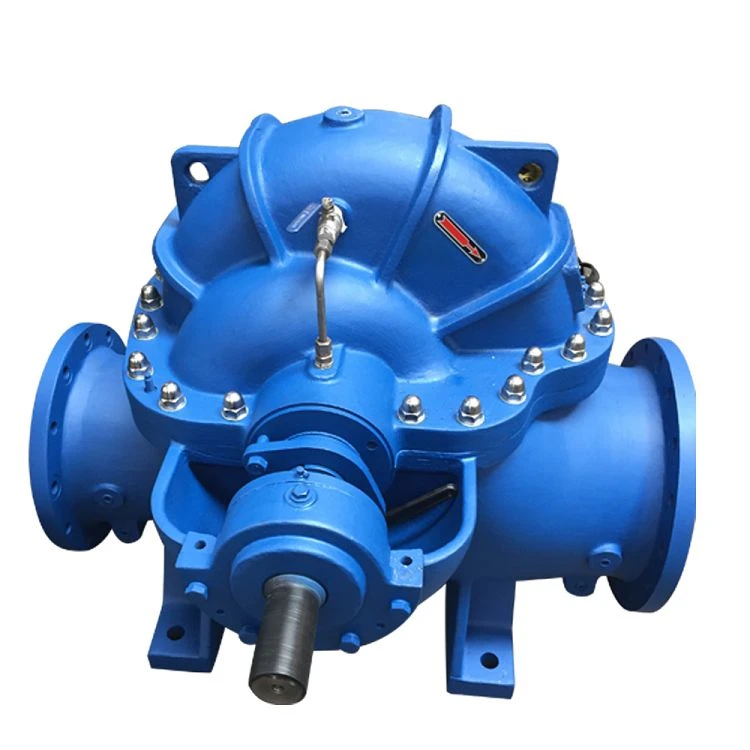

Split Casing Pump

Hebei Tongda Pump Co., Ltd. is one of the leading manufacturers and suppliers of split casing pump in China. Welcome to buy bulk high quality pumps made in China here and get quotation from our factory. We also accept customized orders.

Introduction

Split casing pumps are essential equipment in various industries. They play a crucial role in ensuring the efficient and effective transfer of liquids from one location to another. If you are looking for a reliable and high-quality split casing pump, look no further than us. We are a reputable manufacturer based in China, offering superior split casing pumps that are guaranteed to meet your expectations. In this article, we will introduce our split casing pump and highlight its salient features and benefits.

What is a Split Casing Pump?

A split casing pump is a centrifugal pump used to transfer liquids such as water, chemicals, and petroleum products. It is called a "split casing" pump because its casing is split horizontally into two parts. This design allows for easy access to the impeller and other internal components, making maintenance and repairs straightforward. Split casing pumps are designed for high flow rates and low to medium pressure applications. They come in various sizes, making them ideal for use in different industries, including oil and gas, water treatment, and manufacturing.

Features and Benefits of Our Split Casing Pump

1. Durability

Our split casing pumps are made from high-quality materials, ensuring that they are durable and can withstand harsh environments. The pump's casing is made of cast iron or stainless steel, depending on the application, and the impeller is made of bronze, aluminum, or stainless steel. These materials are highly resistant to corrosion, abrasion, and erosion, ensuring that the pump will last for many years.

2. High Efficiency

Our split casing pumps are designed for high efficiency. The impeller is precisely machined to ensure that it maximizes the transfer of liquid while minimizing energy consumption. The pump's flow path is also optimized to ensure that there is minimal turbulence, resulting in more efficient pumping.

3. Easy Maintenance

Our split casing pumps are designed to be easy to maintain. The split casing design allows for easy access to the impeller and other internal components, making maintenance and repairs straightforward. The pump's components are also standardized, making it easy to source replacement parts.

4. Wide Range of Sizes

Our split casing pumps are available in various sizes, making them suitable for different applications. We offer pumps with flow rates ranging from 80 m3/hr to 22,000 m3/hr and heads ranging from 10 m to 200 m. Whether you need a small pump for domestic use or a large pump for industrial applications, we have you covered.

5. Customizable

We understand that different applications require different specifications. That is why we offer customized solutions to meet our clients' unique needs. We work closely with our clients to understand their requirements and provide tailored solutions that meet their specific needs.

Conclusion

In conclusion, if you are looking for a reliable and high-quality split casing pump, look no further than us. We are a reputable manufacturer based in China, offering superior split casing pumps that are guaranteed to meet your expectations. Our split casing pumps are durable, efficient, easy to maintain, available in various sizes, and customizable. Contact us today to learn more about our split casing pumps and how we can help meet your pumping needs.

Introduction

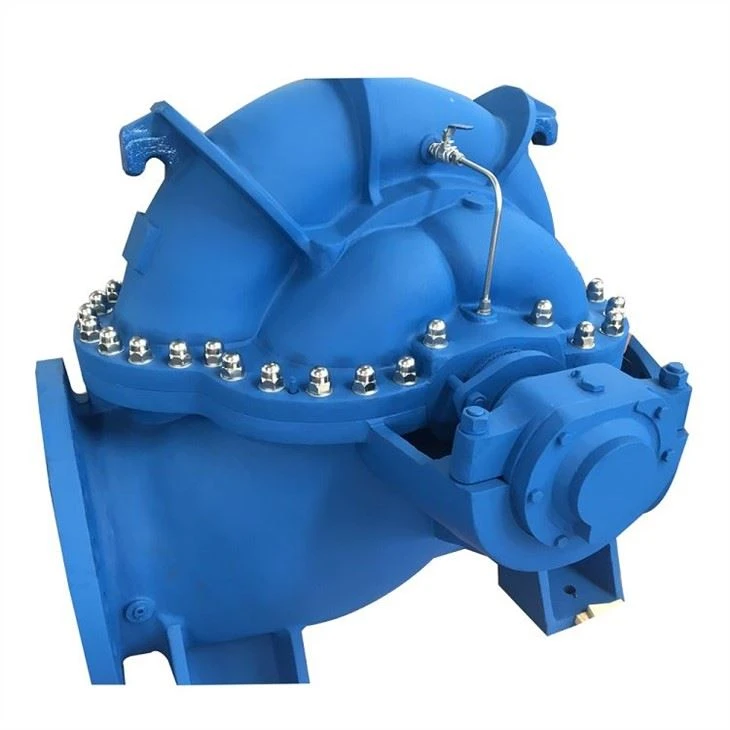

TDSF Split casing pump uses double suction impeller, and the pump can be split in the middle, so it is called double suction split centrifugal pump. It is used for pumping clean water or other liquids with physical and chemical properties similar to clean water. The temperature of the liquid to be transported shall be ≤ 80 ℃. Standard packing seal, optional mechanical seal. Because it can be cut in the middle, it is very convenient for maintenance.

Remark：● For Clean water material ○ For Special media

Structure Diagram

The suction inlet and discharge outlet of split casing pump are under the axis line of the pump, and the horizontal direction is perpendicular to the axis. The pump shell is opened in the middle. It is not necessary to disassemble the water inlet and discharge pipelines and motors (or other prime movers) during maintenance. Viewed from the coupling to the pump, the pump rotates in the reverse direction of the needle. It can also be changed to clockwise needle rotation according to user's ordering needs.

The main parts of split casing pump are: pump body, pump cover, impeller, shaft, double suction sealing ring, shaft sleeve, bearing, etc.

The pump body and the cover constitute the working room of the impeller, the pipe screw hole for installing the vacuum gauge and pressure gauge is made on the water inlet and outlet flange, and the pipe screw hole for discharging water is made at the lower part of the water inlet and outlet flange.

After static balance verification, the impeller is fixed with shaft sleeve and shaft sleeve nuts on both sides. Its axial position can be adjusted by shaft sleeve nuts. The axial force of the impeller is balanced by the symmetrical arrangement of its blades, and some residual axial forces may be borne by the bearings at the shaft end.

The pump shaft is supported by two single row centripetal ball bearings, which are installed in the bearing bodies at both ends of the pump body and lubricated with butter. The double suction sealing ring is used to reduce the water leakage from the water pressure chamber of the pump back to the suction chamber.

The split casing pump is directly driven by the motor through the coupling.

The shaft seal is a soft packing seal. In order to cool and lubricate the sealing cavity and prevent air from leaking into the pump, there is a water seal ring between the packing. When the water pump works, a small amount of high-pressure water flows into the packing cavity through the water seal pipe to play the role of water seal.

Why choose us?

• Our Spilt Case Water Pumps are built to meet the needs of a broad range of industries.
• The company is deeply connected with various business network companies, is product-oriented, develops new business models, introduces advanced management concepts, and becomes a highly competitive national Split Casing Pump product service enterprise.
• We are committed to innovation and continually improving our products.
• We have established a high standard of safety target and a long-term safety mechanism by casting the soul with the concept, relying on the system to guarantee and strengthen the foundation.
• We provide professional and efficient services to our clients.
• Our team has the experience and staying power to provide the perfect solution for our customers.
• Our Spilt Case Water Pumps can be customized to meet specific client needs.
• Although we face many challenges, we believe that we can gain a firm foothold in the world market with our professional technology and excellent products.
• Our experienced team of engineers is capable of designing custom solutions.
• We have many partners at home and abroad, and enjoy a high reputation in the industry of Split Casing Pump.
