Ceramic Pump Flush Plans: External Flush, Internal Flush, and Self-Flush—Which One Do You Need?

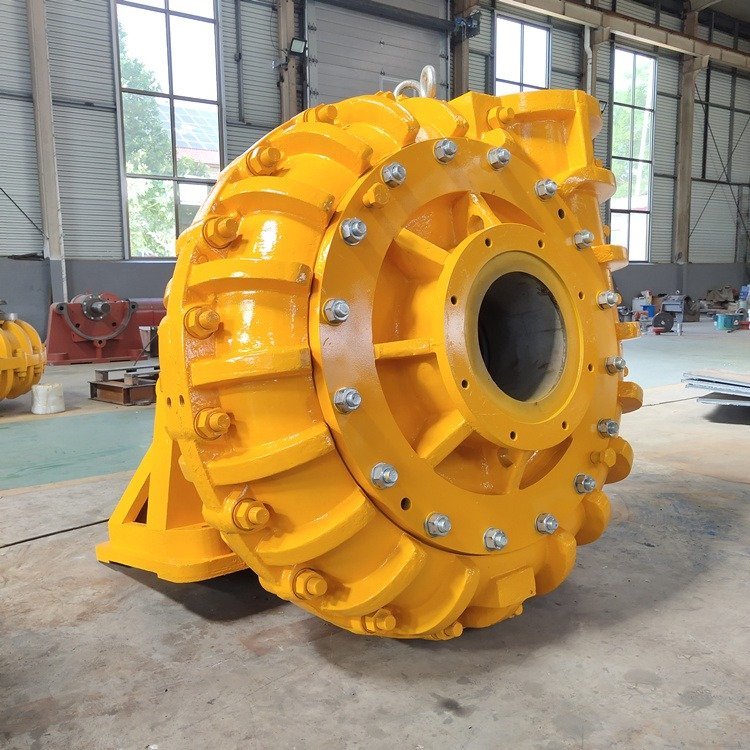

The wetted parts of a ceramic pump-casing, impeller, shaft sleeve-are made of ceramic for a reason: metal tends to break down in corrosive fluids, solids-laden slurries, or high-temperature service. But the mechanical seal in a ceramic pump still relies on metal components. The mating faces of the rotating and stationary rings generate heat continuously while the pump runs. If solid particles get between those faces, wear speeds up and the seal can fail without warning. A flush plan addresses three problems in the seal chamber: heat buildup, particles getting in, and product crystallization.
External Flush: Send Clean Liquid Into the Seal Chamber
The basic concept of external flush is very straightforward. First, clean liquid is taken from outside the pump and injected into the pump at a pressure higher than the seal in order to keep the flow from coming in contact with the sealing surfaces. On a ceramic pump, the external flush line is usually connected to port of the seal gland. The flush liquid crosses the seal faces and goes straight to drain.
The boundaries for this plan are fairly clear: high solids content, crystallization tendency, temperature beyond what the seal can handle, or a product with poor lubricity. Ceramic slurry is a classic non-lubricating fluid; if the seal faces depend only on the product for lubrication, the risk of dry running is high. Flush pressure should generally be 0.05 to 0.1 MPa (about 7 to 15 psi) above seal chamber pressure. Flow must be enough to remove friction heat and keep the seal chamber clean.
The trade-off is the need for a continuous supply of flush liquid. If that liquid is expensive or the supply is unreliable, operating cost goes up. The flush liquid also mixes with the pumped product, so you have to confirm it won't affect downstream process or product quality.
Internal Flush: Circulate the Product Through the Seal
Internal flush does not bring in outside liquid. It uses the pressure difference the pump itself creates to circulate the pumped fluid between the seal chamber and the pump casing. A common setup takes a line off the discharge, drops the pressure through a restriction orifice, feeds the seal chamber, washes the seal faces, and returns to the suction. In API terms, this forward internal flush is Plan 11. It is the simplest and least expensive flush arrangement.
With a ceramic pump, internal flush only works if the fluid is clean enough. If it carries hard particles, the flush actually keeps sending those particles back to the seal faces, and wear can be faster than with no flush at all. The fluid temperature also can't be too high. If it is, the circulating liquid may vaporize inside the seal chamber; once the liquid film breaks, the seal faces touch. Internal flush fits clean water, thin liquids, and services with only light solids.
Self-Flush: The Pump's Own Geometry Does the Work
Self-flush is really a subset of internal flush. The difference is that it doesn't depend on outside piping. It uses pressure difference on the back of the impeller or circulation features in the seal chamber to keep fluid moving naturally around the seal. Some ceramic pumps have an annular passage in the seal chamber. Fluid travels from the inlet side of the pump casing, around the seal faces, and back to the outlet side, forming a flush loop without extra piping.
This approach is the least trouble, but it also gives you the least control. Flush flow and pressure depend completely on how the pump is running. Once conditions move away from the design point, flush performance can drop off sharply. It fits clean fluids, moderate temperatures, and stable operating conditions. It is not a good active choice for complicated services.
Start with the fluid. If it contains solids or tends to crystallize, look at external flush first. Clean liquid outside the seal faces creates a barrier. If the fluid is clean but hot, evaluate internal flush with a cooler. Plan 21 adds a cooler to the self-flush loop and is usually more economical than straight external flush. If the fluid is clean and not hot, internal or self-flush is enough; no outside system is needed.
One more factor that often gets overlooked is whether flush fluid is actually available. If the plant already has a reliable clean water source or a process-compatible liquid, external flush is not hard to set up. If there is no suitable source, forcing an external flush plan just creates a new problem: when the flush supply stops, the seal can fail faster than it would with no flush at all.
Seal life in a ceramic pump often has less to do with the seal material itself and more to do with whether the flush plan matches the actual service. No single plan is best in every case. But if you line up four variables-solids content, temperature, lubricity, and flush-fluid availability-the choice usually narrows to one or two options.
