How Gravel Pumps Keep Pile Foundations Safe
Pile foundations carry the weight of whatever sits above them - a high-rise, a bridge pier, or heavy machinery. The piles need to be solidly anchored into load-bearing ground deep below the surface. With bored cast-in-place piles, one of the most important steps is cleaning out the hole and getting rid of loose material - slurry, cuttings, and debris. That's the job of a gravel pump (often called a sand-and-gravel pump), sometimes referred to as the "underground guardian."
Why Clearing Debris Matters So Much
To build a bored pile, you drill a deep hole, lower a steel rebar cage into it, and then fill it with concrete. Problems tend to show up during drilling. The bit chews through the ground and creates a lot of cuttings, while slurry naturally seeps in from the surrounding soil. If that material isn't removed right away, it piles up at the bottom of the hole.
Too much sediment at the bottom causes two big issues. First, when concrete is poured, that loose material can mix in and create weak spots - or even break the pile apart entirely, making it useless. Second, the layer of sediment acts like a soft cushion at the base. When the pile gets loaded, it can settle too much, and its load-bearing capacity drops dramatically. This is especially risky in tricky ground like sand or cobble-gravel layers.
Old Methods vs. Gravel Pumps
Older methods often used "direct circulation" drilling, where mud is pumped down the outside of the drill pipe and carries cuttings back up through the space between the pipe and the hole wall. That approach is weak at removing debris. In sand or cobble-gravel ground, cuttings are large and sink fast, so direct circulation often can't get them out. The result: high failure rates and poor-quality holes.

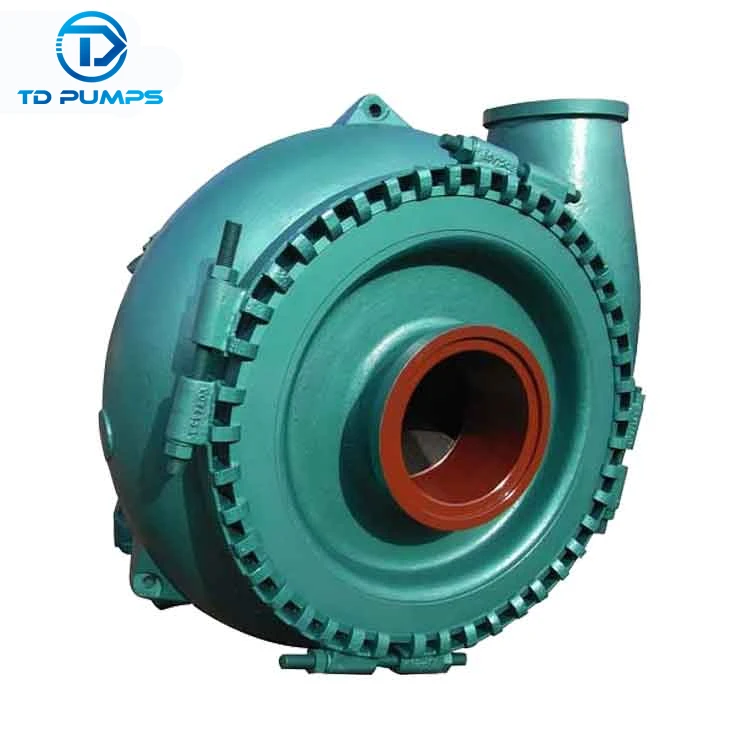

Gravel pumps changed all that. They're centrifugal slurry pumps built to handle fluids loaded with big, solid particles. They use closed impellers with wide passages, so large rock fragments can pass through without clogging. The parts that touch the flow are made from hard, wear-resistant materials - like high-chrome alloys - that can take the heavy abrasion from sand and gravel.
How Pump-Suction Reverse Circulation Works
In pile work, gravel pumps are mainly used in pump-suction reverse circulation drilling. Here's how it works: the pump creates suction inside the drill pipe. The weight of the fluid column in the hole and outside air pressure push the drilling mud - along with the cuttings just carved off by the bit - from the space around the drill pipe into the bottom opening of the pipe. The pump then sucks it up the inside of the pipe and shoots it out into a settling tank at the surface.
Cuttings settle out in the tank, and the cleaned mud flows back down into the hole. This sets up a continuous loop. Drilling and removing cuttings happen at the same time. As soon as the bit cuts material loose, it gets pulled out almost immediately, instead of piling up at the bottom. Compared with direct circulation, reverse circulation removes cuttings far more effectively, drills faster - up to 30–50% more efficient in moderately weathered rock - and makes it easier to keep bottom sediment within allowable limits.
Three Ways Gravel Pumps Make Pile Construction Safer
First, they keep the pile shaft solid. By quickly removing cuttings, the pump stops sediment from building up at the bottom. That eliminates the risk of weak layers or breaks caused by sediment mixing into the concrete, so you end up with a continuous, dense pile.
Second, they protect the pile's load capacity. When the bottom is cleaned thoroughly, the concrete bonds directly and tightly with the bearing layer. This lets the pile develop its full end-bearing resistance. If the sediment isn't removed properly, the pile can settle too much under load - like stepping onto a soft cushion - and that seriously weakens its ability to carry weight.
Third, they help keep the borehole wall stable. In reverse circulation, the mud forms a thin filter cake on the hole wall that helps prevent cave-ins. That's especially important in loose, unstable ground like cobble and gravel layers.
In short, a gravel pump tackles one of the sneakiest and most serious quality problems in pile construction - sediment buildup at the bottom of the hole. It makes sure every pile rests on solid bearing ground, not a heap of loose drill cuttings. That's exactly why it earns the title "underground guardian." You never see it working, but the safety of the entire structure depends on how well it clears away debris deep beneath the surface.
