End Suction Pump

Hebei Tongda Pump Co., Ltd. is one of the leading manufacturers and suppliers of end suction pump in China. Welcome to buy bulk high quality pumps made in China here and get quotation from our factory. We also accept customized orders.

Introduction:

End suction pumps are a type of centrifugal pump that is used for a wide range of applications. They are designed to pump water and other liquids from one location to another, with a maximum flow rate and pressure that is perfect for most industrial and commercial applications. As a manufacturer located in China, we offer high-quality end suction pumps that are ideal for merchants outside of China. Our pumps offer top-notch performance, reliability, and efficiency, making them a perfect choice for a variety of industrial and commercial applications.

Features:

Our end suction pumps are designed for maximum efficiency and reliability. The following are some of the key features that make our pumps stand out from the competition:

1. High efficiency: Our end suction pumps are designed to operate at maximum efficiency, ensuring a high flow rate and reduced energy consumption.

2. Self-priming: Our pumps are self-priming, which means that they can start quickly and easily without the need for external priming.

3. Compact design: Our end suction pumps have a compact design, making them easy to install and operate in almost any setting.

4. Durable construction: Our pumps are built to last and can handle even the most demanding industrial applications.

5. Wide range of applications: Our end suction pumps are perfect for a wide range of applications, including water supply, irrigation, and industrial applications.

Benefits:

There are a number of benefits to using our end suction pumps. Some of the key benefits include:

1. High efficiency: Our pumps are designed to be highly efficient, helping to reduce energy costs and increase productivity.

2. Self-priming: Our pumps are easy to start and require minimal maintenance, making them a reliable and cost-effective option for business owners.

3. Easy installation: Our end suction pumps are designed to be easy to install, which helps to reduce installation costs and minimize downtime.

4. High durability: Our pumps are built to last, which means that they offer long-term reliability and low maintenance costs.

5. Versatility: Our end suction pumps are versatile and can be used for a wide range of applications, making them a great choice for businesses of all sizes.

Applications:

Our end suction pumps are perfect for a wide range of applications, including the following:

1. Water supply: Our pumps are ideal for water supply applications, including pumping water from wells, tanks and reservoirs.

2. Irrigation: Our pumps are also ideal for irrigation applications, including pumping water to crops and landscaping.

3. Industrial applications: Our pumps are perfect for a wide range of industrial applications, including pumping chemicals and liquids in manufacturing processes.

4. HVAC: Our end suction pumps are also ideal for heating and cooling systems, including boiler feed, chillers, and more.

Conclusion:

In conclusion, our end suction pumps offer high-quality performance, versatility, and reliability. As a manufacturer located in China, we can offer competitive pricing, exceptional customer service, and prompt delivery to merchants worldwide. Our pumps are perfect for a wide range of applications, making them an excellent choice for international merchants looking to improve their business operations. Contact us today to learn more about our end suction pumps and how they can benefit your business.

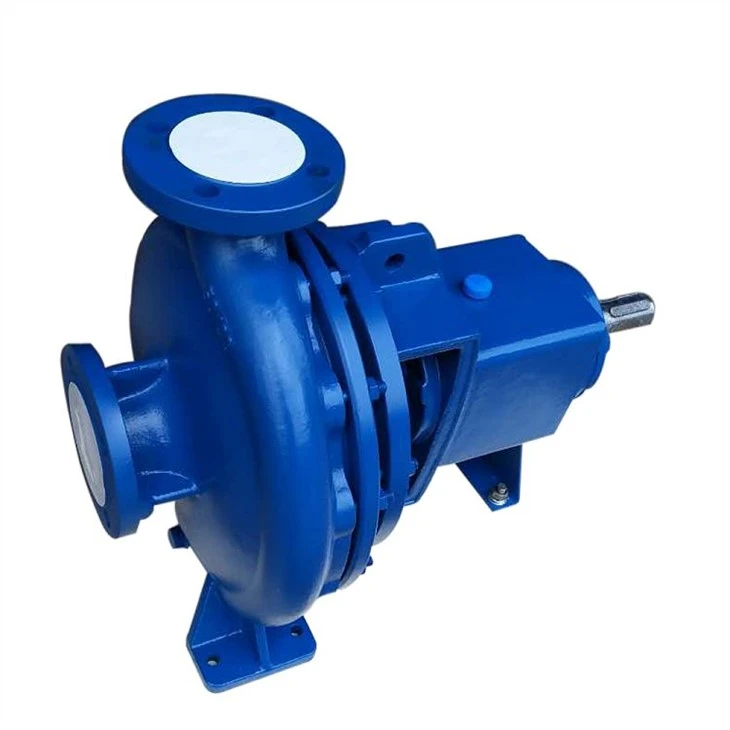

Introduction

IS end suction pump is a single-stage single suction (axial suction) clean water centrifugal pump, which is suitable for industrial and urban water supply and drainage, as well as agricultural drainage and irrigation. It is used for transporting clean water or other liquids similar with water. The temperature shall not be higher than 80 ℃.It is designed by ISO 2858 standard.

Structure Description

IS end suction pump is mainly composed of pump body, pump cover, impeller, shaft, sealing ring, shaft sleeve and suspension bearing components.

The pump housing (i.e. pump body and pump cover) constitutes the working chamber of the pump. Impeller, shaft and rolling bearing are the rotors of the pump. The suspension bearing component supports the rotor component of the pump, and the rolling bearing is subjected to the radial force and axial force of the pump.

In order to balance the axial force of the pump, sealing rings are set at the front and rear of the impeller of most pumps, and balance holes are set on the rear cover plate of the impeller. Due to the small axial force of some pumps, the back of the impeller is not provided with a sealing ring and a balance hole.

The axial seal of the pump is divided into three forms: soft packing seal, mechanical seal and rubber oil seal.

The rotation mode of the pump is connected with the motor through the elastic coupling. From the driving end, the pump rotates clockwise.

Features

IS end suction pump casing and cover are divided from the back of the impeller, has the advantages of convenient maintenance. During maintenance, the rotor parts can be pulled out without moving the pump body, suction pipeline, discharge pipeline and motor.

Why choose us?

• Our Centrifugal Water Pumps are versatile and can be used in a variety of applications, from agricultural to industrial.
• At the beginning of its establishment, the company established the corporate goal of 'creating a leading brand in the global artificial stone industry' and a corporate culture with the core spirit of 'innovation and enterprising, the pursuit of excellence'.
• We are proud of our ability to deliver reliable and high-performing products to our customers.
• We continue to realize the corporate vision of making the company bigger and stronger.
• Our experienced team of professionals is always ready to provide technical support and assistance to our customers.
• We are in firm belief that continuously improving independent innovation is the source of enterprises' sustained development.
• Our company is committed to sustainable and environmentally friendly manufacturing practices.
• Our company's End Suction Pump are mainly export-oriented, our company in line with the development concept of 'survival by quality, development by reputation' and has achieved good economic and social benefits.
• We use only the highest quality materials and components in the production of our Centrifugal Water Pumps.
• The market has higher and higher expectations for product quality and R & D capability, and the trend of scientific and technological innovation driving enterprise success is becoming more and more obvious.
